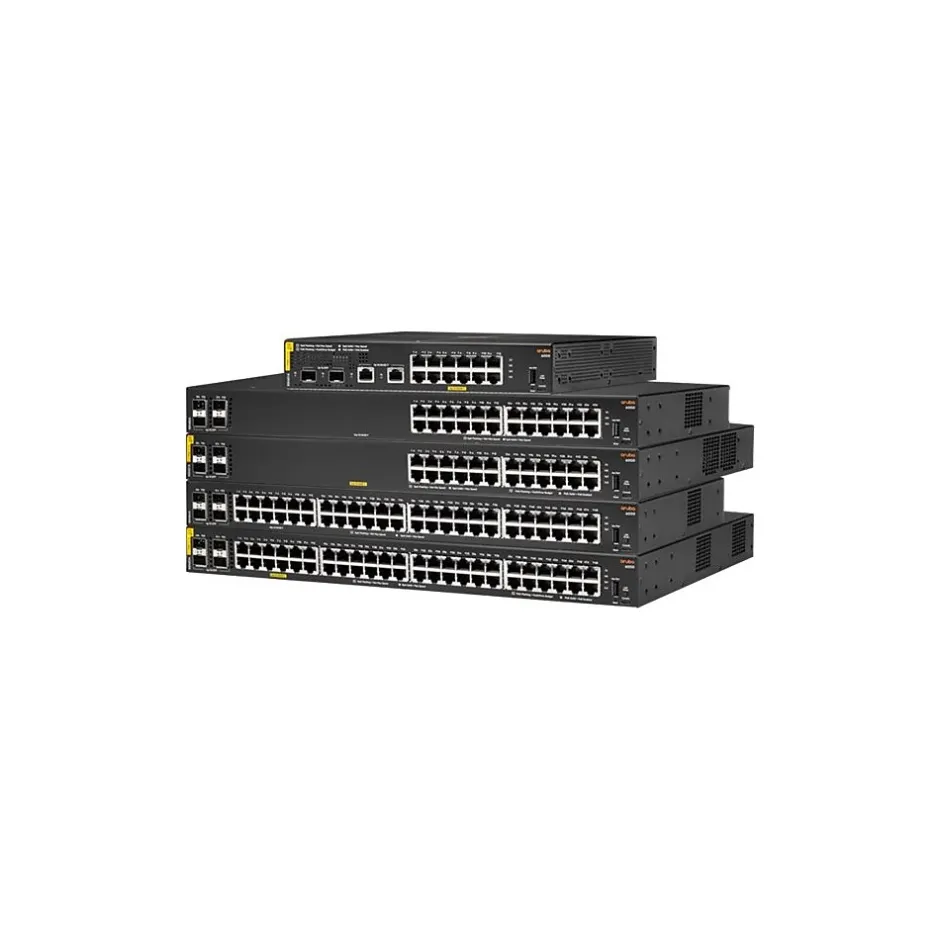

Aruba CX 6000 24-Port Gigabit Ethernet Managed Switch, 10/100/1000 Mbps, Black (R8N87A#ABA)* Ethernet Switches & Splitters

$138.89

SKU: SKUIM19ZN347 Categories: Computers & Accessories, Ethernet Switches & Splitters, Networking & Wi-Fi Tag: Aruba Brand: Aruba

Description
Reviews (0)

The Aruba CX 6000 Switch series is modern family of entry level access switches perfect for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is perfect for use in quiet, small work spaces. The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing

Optimized for reliable, simple and secure access, this managed switch provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications
Contains 24 10/100/1000BASE-T ports and four 1Gb SFP ports; supports PoE standards: IEEE 802.3af, 802.3at
Based on AOSCX, a modern database-driven operating system that is built on a modular Linux architecture; secure management access delivers secure encryption of all access methods
Up to 104Gbps in non-blocking bandwidth and up to 77.3Mbps for forwarding
Dimensions: 1.73″H x 17.4″W x 12″D
Power consumption (230 VAC): idle: 22.9W; max. power (w/o PoE): 32.7W; max. power (w/ PoE): 455W
Certifications and standards: Meets or exceeds UL, EN, CSA, VCCI, IEC standards
Mounts in an EIA-standard 19″ telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
Simple deployment with Zero Touch Provisioning
Simplifies adding, moving, and changing with colorless ports
Selectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network applications
Auto-MDIX provides automatic adjustments for straight-through or crossover cables on all 10/100/1000 ports
Unsupported transceiver mode (UTM) allows inserting and enabling all unsupported 1Gb transceivers and cables
VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously
Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9198 bytes
Lifetime manufacturer limited warranty

Specifications table
Attribute name	Attribute value
Address Database Size	10/100/1000Base-T
Data Transfer Rate The overall depth of the product, measured front to back.	12
Gaming The overall height of the product, measured top to bottom.	1.73
Input Voltage Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.	Yes
Layer Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	1000 – 1499
Module Support	Managed Switch
Number of Ethernet Ports	Gigabit Ethernet
Power Supply Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.	Yes
Quality of Service Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP.	Yes
Series or Collection	Wall Mountable, Rack-Mountable
True Color	Yes
Warranty Information Weight of the product measured in pounds.	9.24
Width in Inches The overall width of the product, measured left to right.	17.4
