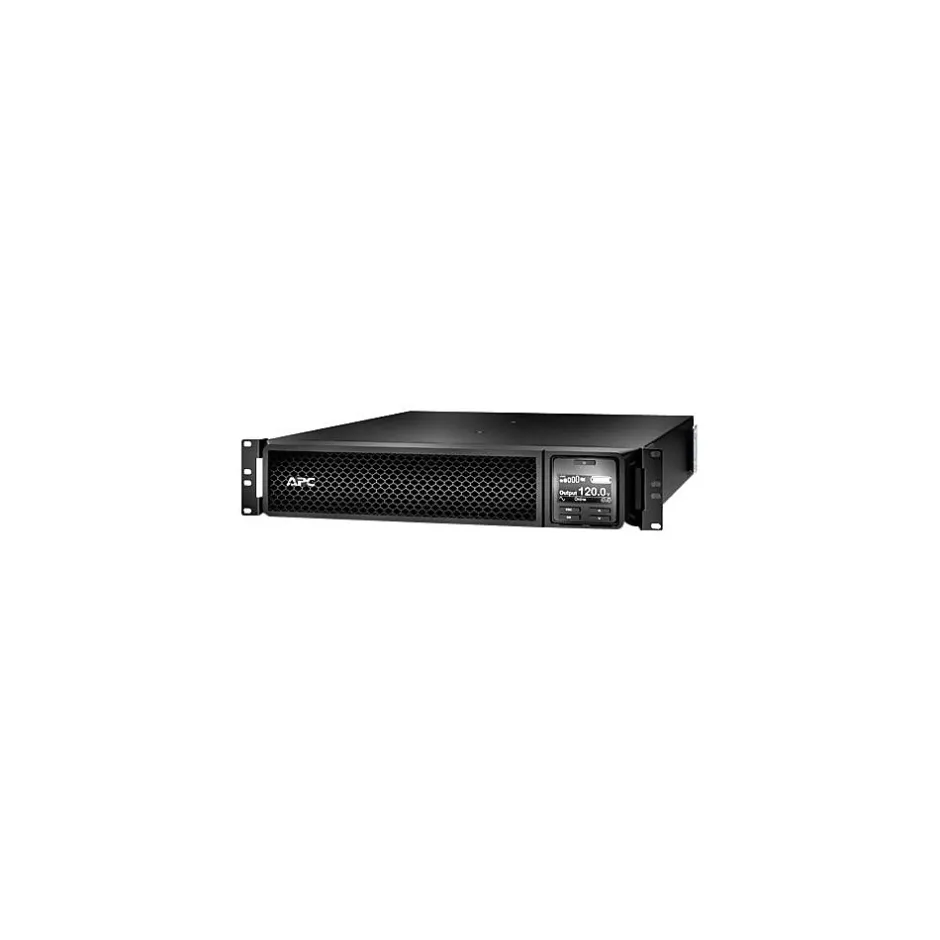

The APC® Smart-UPS™ SRT3000RMXLA 3000 VA 120 V dual conversion online UPS offers maximum battery recharge time of 3 hrs. It measures 3.35″ x 17″ x 25″. The lead acid battery UPS has one NEMA L5-30R plug, eight NEMA 5-20R plugs, RJ-45 serial port, SmartSlot and USB port for connectivity. The control panel has multi-function LCD status and control console. It has automatic/manual internal bypass and audible/visible alarms that come prioritized by severity. This hot-swappable UPS withstands an operating temperature rating of 0 to 40 deg C. It comes with CD with software, documentation CD, installation guide, rack mounting brackets, support rails, USB cable and warranty card.
- Dual conversion online UPS for power protection
- Load capacity: 3000 VA, 2700 W
- Dimensions: 3.35″H x 17″W x 25″D
- Maximum battery recharge time: 3 hrs.
- Output voltage: 120 VAC (nominal)
- Control panel: Multi-function LCD status and control console
- Form factor: 2U tower/rack mountable, hot-swappable batteries
- Battery chemistry: Sealed Lead Acid, Replacement battery: APCRBC152, Battery capacity: 454 VAh
- Interface: RJ-45 serial, Smart-slot, USB, Receptacles: One NEMA L5-30R, eight NEMA 5-20R
- Input connections: NEMA L5-30P, Cord length: 8′
- Color: Black, Battery characteristics: Maintenance-free with suspended electrolyte, leak-proof, Emergency power off, Expected battery life: 3 -5 years
- Input voltage: 120 VAC (nominal), Output frequency (sync to mains): 50/60 Hz +/- 3 Hz, Input frequency: 40 – 70 Hz (auto sensing)
- Waveform type: Sine wave, Surge energy rating: 340 J
- Internal bypass (automatic and manual), Audible alarm: Audible and visible alarms prioritized by severity
- Temperature: 0 – 40 deg C, Storage Temperature: -15 to 45 deg C, Relative humidity: 0 – 95% (operating/storage), Protection class: IP 20
- Includes smart-UPS, CD with software, documentation CD, installation guide, rack mounting brackets, rack mounting support rails, warranty card
- Meets ENERGY STAR, RoHS, REACH, CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778 certifications and standards
- Weight: 69 lbs.
- Comes with 3 years (without battery) and 2 years (with battery) warranty
| Attribute name | Attribute value |
|---|---|
| *features | |
| Battery Life (Years) Refers to the amount of time it takes for the battery to reach a full charge | 3 |
| Battery Backup or UPS Device Type Indicates whether product can be mounted | Mountable |
| Battery Backup LCD Display | Lead Acid Battery |
| Cord Length (ft.) | Rackmount |
| connectivity | |
| USB Connectivity | USB |
| dimension | |
| Depth in Inches The overall width of the product, measured left to right. | 17 |
| Weight (lbs.) The overall height of the product, measured top to bottom. | 3.35 |
| power | |
| Output Power Capacity (W) Power capacity, measured in volt-amperes (VA) and also referred to as VA rating, is the maximum amount of power an uninterruptable power supply (UPS) can support. | 3000 |
| Battery Backup Run Time A rack unit (U) is a unit of measure defined as 1+3⁄4 inches (44.45 mm), frequently used as a measurement of the overall height of 19-inch and 23-inch rack frames, as well as the height of equipment that mounts in these frames. | 2U |
| Output Voltage | 9 |
| Input Voltage VA (volt-ampere) Rating, also referred to as power capacity, is the maximum amount of power an uninterruptable power supply (UPS) can support. | 2501-3000 |
| Joule Rating Specifies the length of the manufacturer warranty included with the product. | 3 Year |
| additional details | |
| Series or Collection | RoHS, RCM, IP20, EN 62040-1, VDE, EAC, IEC 62040-1, IEC 62040-2, EN 62040-2 |
| True Color Operating temperature, expressed in degrees Fahrenheit, is the temperature range in which a battery or device can safely and properly operate. | 32 – 104 deg F |
