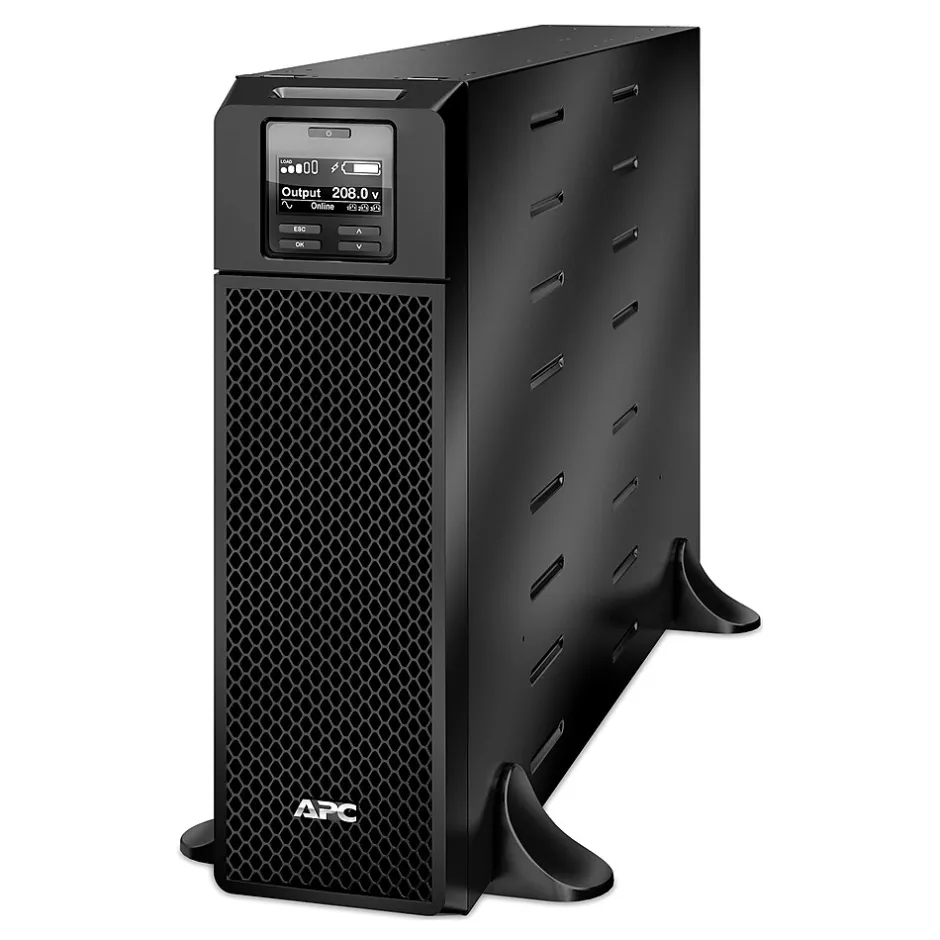

The APC SRT5KXLT 208 V rack/tower convertible Smart-UPS with 1 to 20 kVA load capacity is perfect for servers, voice/data networks, medical labs and light industrial applications. It features an LCD graphics display that displays text and mimics diagrams. The Smart-UPS maximizes the battery performance, life and reliability with the intelligent, precision charging management. With the included PowerChute network shutdown software, this Smart-UPS offers unattended graceful shutdown of network operating systems.
- Smart-UPS is perfect for servers, voice/data networks, medical labs and light industrial applications
- Load capacity: 1 – 20 kVA
- Dimensions: 17″H x 5.1″W x 28.32″D
- Offers 1.5 hrs. recharge time with 840 VAh capacity
- Output voltage: 208 V
- LCD graphics display for displaying text and mimic diagrams as well as system parameters
- Rack/tower convertible protects the initial investment in the UPS
- Output power capacity: 4.25 kW
- Interface/ports: RJ-45 10/100 Base-T, RJ-45 serial, smart-slot, USB, Output connections: (2) NEMA L6-20R, (2) NEMA L6-30R
- Provides IP20 protection
- Cord length: 10′
- Load crest factor: 3:1
- Input voltage: 160 – 275 V, 100 – 275 V (half load)
- Battery type: Sealed lead-acid
- Surge energy rating: 480 J
- Multi-function LCD status and control console, audible and visible alarms prioritized by severity
- Temperature: 0 – 40 deg C (operating), -15 to 45 deg C (storage), 0 – 95% humidity, 10000′ elevation operating, 50000′ storage
- Meets CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, NOM, UL 1778, RoHS and REACH certifications or standards
- Weight: 123 lbs.
- Comes with 3 years repair or replace warranty (excluding battery) and 2 years warranty for battery
| Attribute name | Attribute value |
|---|---|
| *features | |
| Cord Length (ft.) Indicates whether product can be mounted | Mountable |
| Battery Backup LCD Display | Lead Acid Battery |
| Battery Backup or UPS Form Factor Refers to the amount of time it takes for the battery to reach a full charge | 1.5 |
| Battery Backup or UPS Device Type | USB Connection |
| Battery Backup Connectivity All Types of Connector/Port/Interface on product. | RJ-45 10/100 Base-T, RJ-45 serial, smart-slot, USB, Output: (2) NEMA L6-20R, (2) NEMA L6-30R |
| dimension | |
| Weight (lbs.) The overall depth of the product, measured front to back. | 28.3 |
| Width in Inches The overall height of the product, measured top to bottom. | 17 |
| power | |
| Output Voltage | less than 10 minutes |
| Outlet Count The joule rating number refers to how much energy the surge protector can absorb before it fails. The higher the number, the greater the protection. | 480 |
| Power Capacity (VA) VA (volt-ampere) Rating, also referred to as power capacity, is the maximum amount of power an uninterruptable power supply (UPS) can support. | More than 3000 |
| Output Power Capacity (W) Specifies the length of the manufacturer warranty included with the product. | 3 Year |
| additional details | |
| Compliance Standards Items of a particular grouping, as merchandised and labeled by a manufacturer | Smart-UPS SRT 5000VA |
| True Color Operating temperature, expressed in degrees Fahrenheit, is the temperature range in which a battery or device can safely and properly operate. | 32 – 104 deg F |
