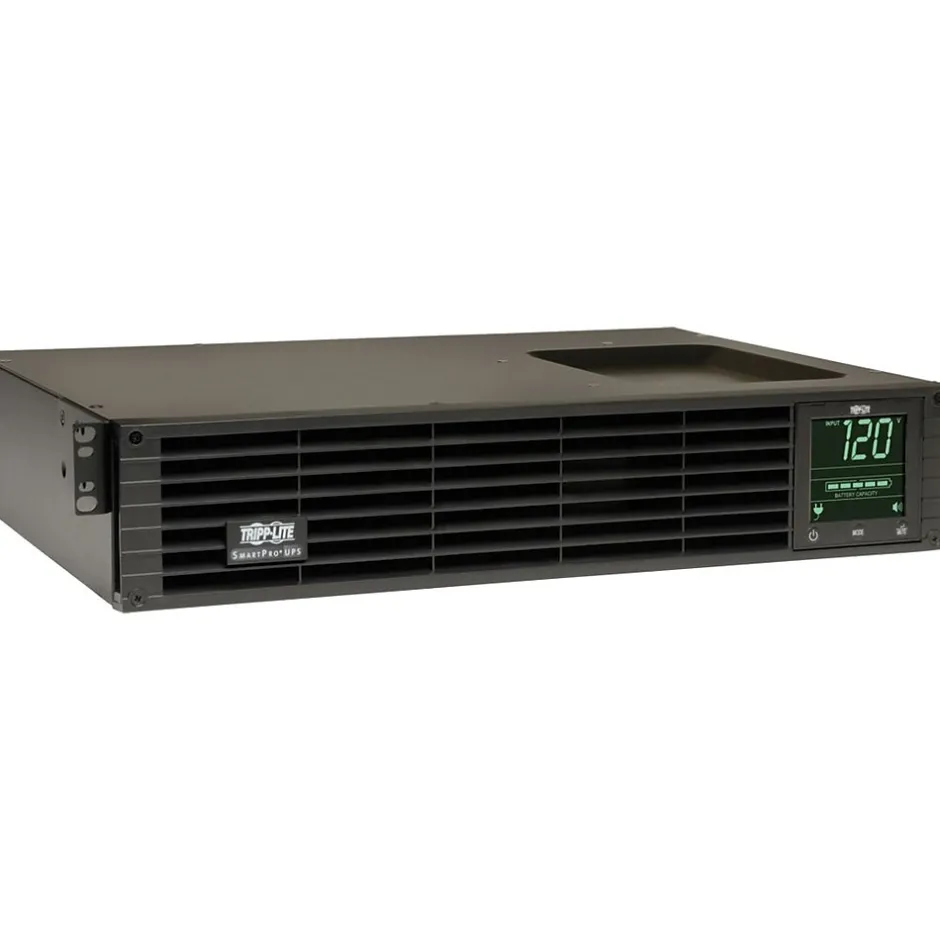

Tripp Lite SmartPro TAA 8-Outlets 1500VA UPS Line interactive UPS has line interactive rack/tower UPS with AVR corrects brownouts and overvoltage’s. UPS has high 95% efficiency rating for reduced power consumption and BTU emissions.
- 1350 W load capacity
- Compatible with BP36V15-2U, BP36V42-3U, BP36V27-2US (external battery pack)
- NEMA 5-15P connector
- Dimensions: 3 1/2″(H) x 17 1/2″(W) x 13 1/2″(D)
- Form factor: 2U tower/rack-mountable
- Power supply: Voltage: 110 V AC (input), 120 V AC (output), Input current: 10.1 A, Rated input current: 12A, Input circuit breakers: 15A, output derates to 1200 watts in all external battery configurations
- Ports: USB, serial port
- Network management: SNMP manageable, UPS housing material: Steel, UPS input cord length: 10′, Input phase: Single
- Battery: Run time: 4.9 minutes (full load), 14 minutes (half load), Battery recharge time: 4.5 hours (max.), hot-swappable
- Receptacles: 8 x NEMA 5-15R, Load management receptacles: Two switchable two-outlet 5-15R load banks, Output voltage regulation (line mode): -14%, +6%, Battery mode: +/- 5%
- Transfer time: 4 ms (AC to battery mode), 1 ms (battery to AC mode), Cooling method: Fan, Output AC waveform (AC mode): Sine wave, Battery mode: Pure sine wave
- Switches: 3 pushbutton switches control off/on power status, mode selection and mute/enter control functions
- Software included: PowerAlert software
- Operating temperature: 0 – +40 deg C, Storage: -15 – +50 deg C, Humidity: 0 – 95%
- Features back panel grounding lug, cold-start operation supported, hot-swappable batteries, emergency power OFF
- Includes UPS, software, USB/serial cable, mounting hardware, interface cable, instructional manual with warranty information
- Certifications and standards: RoHS
- Weight: 46.5 lbs.
- Warranty: 2 years limited
| Attribute name | Attribute value |
|---|---|
| *features | |
| Battery Backup or UPS Device Type | 10 |
| Battery Backup LCD Display Indicates whether product can be mounted | Mountable |
| On-Line Phase Refers to the amount of time it takes for the battery to reach a full charge | 4.5 |
| Battery Backup or UPS Form Factor | USB Connection |
| Battery Backup Connectivity Weight of the product measured in pounds. | 46.5 |
| Depth in Inches The overall width of the product, measured left to right. | 17.5 |
| Height in Inches | less than 10 minutes |
| Rack Units The power supply’s voltage, which ultimately powers the device. | 110 V AC |
| VA Rating Power capacity, measured in volt-amperes (VA) and also referred to as VA rating, is the maximum amount of power an uninterruptable power supply (UPS) can support. | 1500 |
| Output Voltage Specifies the length of the manufacturer warranty included with the product. | 2 Year |
| additional details | |
| Compliance Standards Operating temperature, expressed in degrees Fahrenheit, is the temperature range in which a battery or device can safely and properly operate. | 32 – 104 deg F |
