Brainboxes SW-008 8-Port Fast Ethernet Wall Mountable Switch* Ethernet Switches & Splitters
$58.89
Light Industrial/Commercial Ethernet 8-port unmanaged switch. Galvanically isolated ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimized based on the status of the link device. No software required. Perfect for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available.
- Light industrial/commercial Ethernet unmanaged switch
- Eight 10/100Mbps Ethernet ports
- Dimensions: 4.3″H x 3.9″W x 1.2″D
- Wide power input: 5-30VDC
- Meets or exceeds Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, UL 60950-1 standards
- IP30 nonconducting polyamide casing prevents electrical conduction, for safer installation
- No software needed: simply plug in any Ethernet cable
- Power consumption is optimized based on the status of the link device
- All Ethernet ports are Auto MDI/ MDIX supporting straight through or crossover Ethernet cables
- Easy wire removable screw terminal block

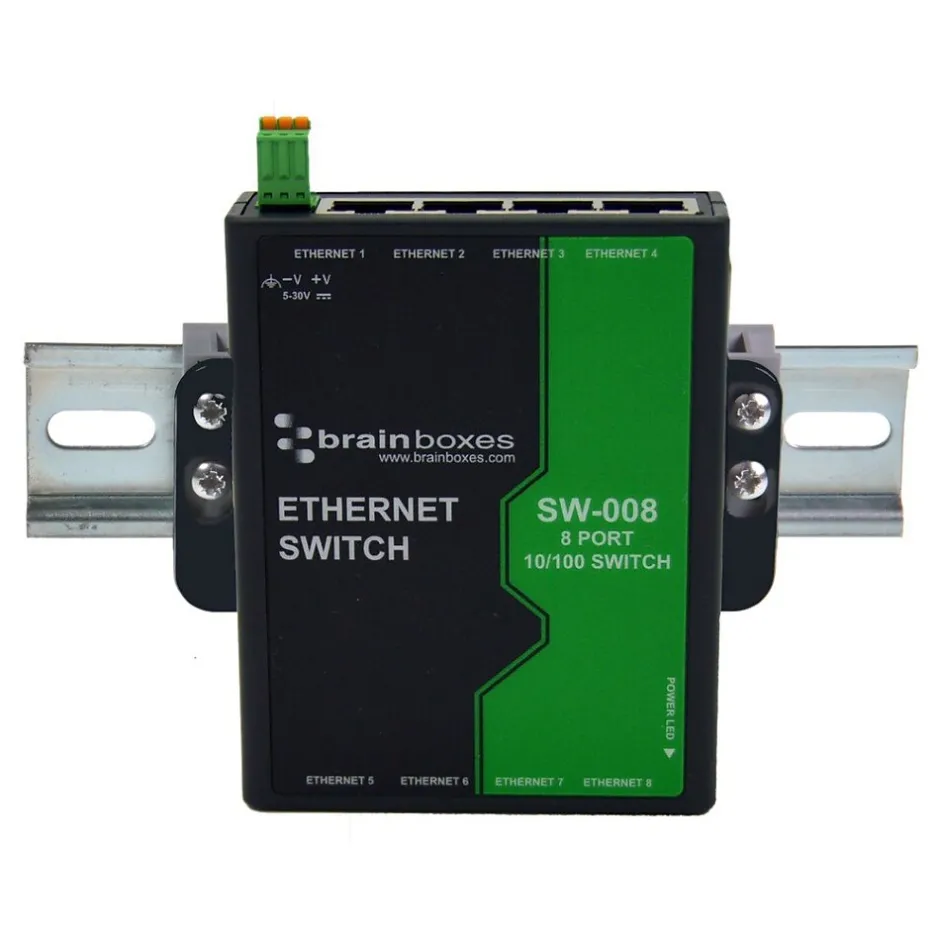

- Wall-mount holes compatible with MK-048 DIN mount clips
- Lifetime manufacturer limited warranty
| Attribute name | Attribute value |
|---|---|
| Amperage (amps) Auto-Sensing is a feature in which a device can determine the characteristics of an attached device and configure itself accordingly | Yes |
| Data Rate Performances The overall depth of the product, measured front to back. | 1.2 |
| Gaming The overall height of the product, measured top to bottom. | 4.3 |
| Input Voltage | No |
| Network Management Type The number of Ethernet ports on a networking hardware device that Ethernet cables plug into. | 8 |
| Performance Class How the product is powered. (ie. Battery, Solar, etc.) | 1.1 Watts Max : 220 mAmps at +5VDC/36mAmps at+30VDC |
| Power over Ethernet Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP. | No |
| Series or Collection | Wall Mountable, Rack-Mountable |
| True Color Specifies the length of the manufacturer warranty included with the product. | Limited Lifetime Warranty |
| Weight (lbs.) The overall width of the product, measured left to right. | 3.9 |
