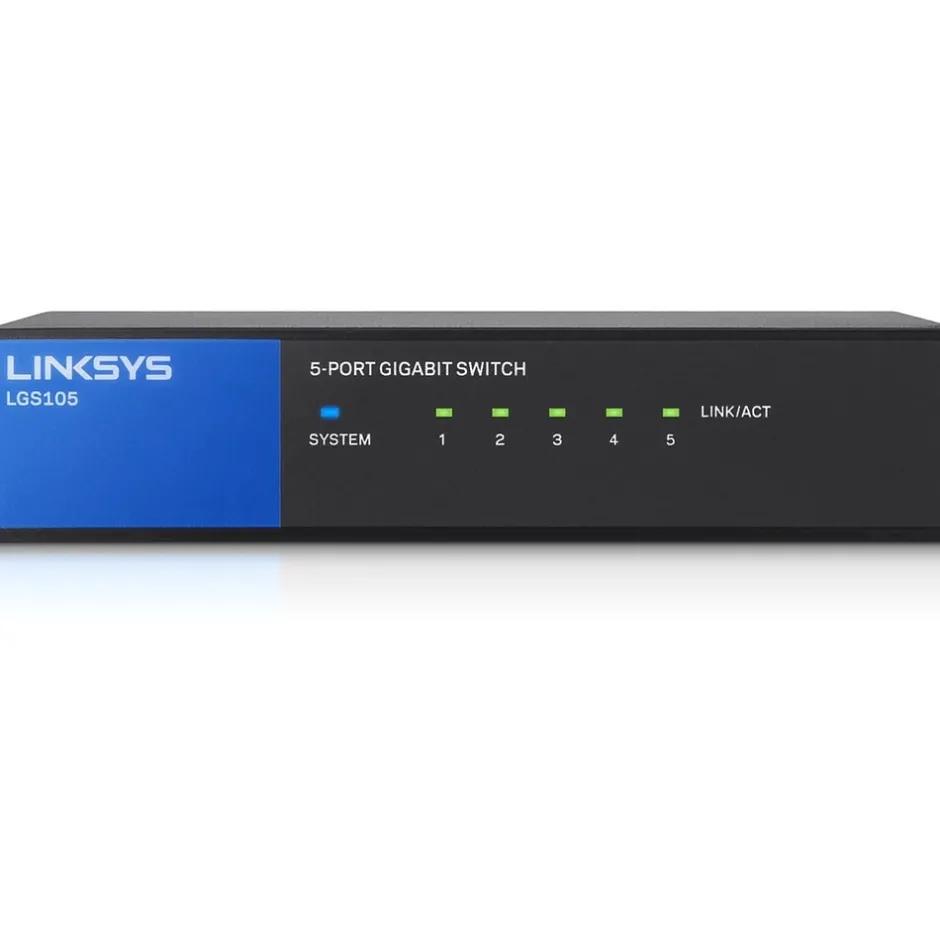

Five-port gigabit switch accelerates your performance and productivity when you send large files to network servers, drives and printers. Wired connection speed up to 1,000 Mbps minimizes transfer times and interference while streaming high-bandwidth files. Plug-and-play technology instantly extends your office network with a quick, easy installation. Auto-sensing ports automatically optimize the speed for each connected device. The auto power-down feature disables unused ports to maximize its efficiency.
- Address database size: 8000 MAC addresses
- Total number of network ports: 5, number of network (RJ-45) ports: 5, port/expansion slot details: 5 x Gigabit ethernet network
- Media type supported: Twisted-pair, Ethernet technology: Gigabit Ethernet, network technology: 10/100/1000Base-T
- Performance: Bandwidth: 10 Gb/s, full line rate and forwarding rate of 64B frame at: 1.488 Mpps for 1000M port, 0.1488 Mpps for 100M port, 0.01488 Mpps for 10M port
- Status LEDs: Link and activity indicators
- Form factor: Desktop
- Layer supported: 2
- AC power: 100 – 240 VAC, 50/60 Hz, 12 VDC or 5 VDC, power consumption in iddle/use (100% traffic): 0.73 W/2.22 W
- Operating temperature: 0 – 40 deg C, operating humidity: 10 – 90% RH
- Certifications and standards: IEEE 802.3/3ab/3u/3x
- Warranty: Lifetime limited
| Attribute name | Attribute value |
|---|---|
| Address Database Size Auto-Sensing is a feature in which a device can determine the characteristics of an attached device and configure itself accordingly | Yes |
| Data Transfer Rate | 2 |
| Max. Data Transfer Rate (Mbps) | Twisted Pair |
| Network Management Type The number of Ethernet ports on a networking hardware device that Ethernet cables plug into. | 5 |
| Performance Class Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP. | No |
| Switch Form Factor Specifies the length of the manufacturer warranty included with the product. | Limited Lifetime Warranty |
