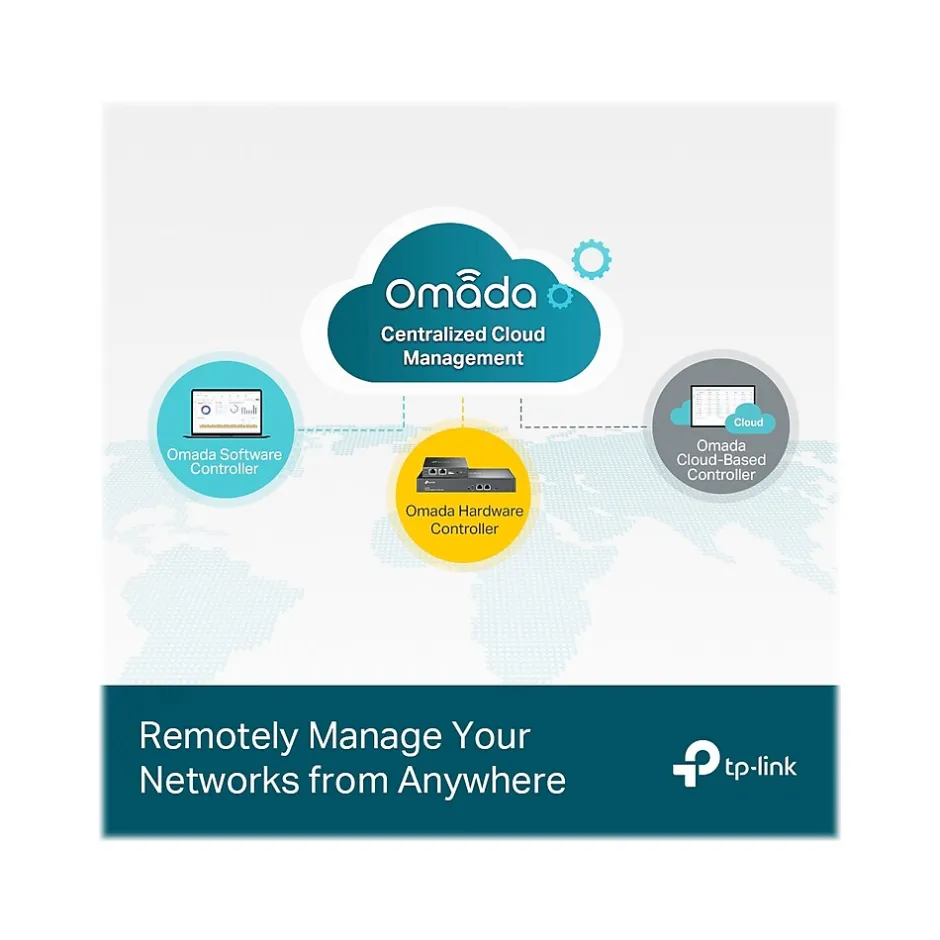

Featuring 48 PoE+ (802.3af/at compliant) ports, the TP-LINK JetStream switch supports a total PoE power budget up to 384W. Omada’s software-defined networking (SDN) platform integrates network devices, including access points, switches and routers, providing 100% centralized cloud management. Omada creates a highly scalable network, all controlled from a single interface. The switch provides seamless wireless and wired connections, making it great for use in hospitality, education, retail, offices, and more. An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
- Convenient managed gigabit switch with 48-port PoE+ for a complete Omada network
- 48 x 802.3af/at compliant gigabit PoE+ ports and 4 x gigabit SFP slots provide high-speed connections
- Switching capacity: 104Gbps; packet forwarding rate: 77.4Mbps
- Comes in a 1U rack-mountable form factor
- SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events
- With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply
- Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats
- Maximum power consumption: 485.4W
- Meets or exceeds the CE, FCC, and RoHS standards
- Integrated list of common DoS attacks is available, making it easier than ever to prevent them
- Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided
- QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind
- Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links
- System requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, or Linux
- Package contents: switch, power cord, rack mounting kit, rubber feet, quick installation guide
- Lifetime manufacturer limited warranty
| Attribute name | Attribute value |
|---|---|
| Data Rate Performances The overall depth of the product, measured front to back. | 13 |
| Gaming The overall height of the product, measured top to bottom. | 1.7 |
| Input Voltage | 9KB |
| LACP Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds. | 1000 – 1499 |
| Network Management Type The number of Ethernet ports on a networking hardware device that Ethernet cables plug into. | 48 |
| Performance Class | Yes |
| Power Supply Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable. | Yes |
| Quality of Service Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP. | v1, v2c, v3 |
| Series or Collection | Non-Stackable |
| Switch Form Factor Actual manufacturer name for the color of the product. | Black |
| VLAN Support Specifies the length of the manufacturer warranty included with the product. | Limited Lifetime Warranty |
| Width in Inches The overall width of the product, measured left to right. | 17.3 |
