TP Link TP-Link Omada 48 Gigabit Ethernet Ports Multi-Gigabit PoE Managed Switch, 216 Gbps, Black (SG6654X)* Ethernet Switches & Splitters

TP Link TP-Link Omada 48 Gigabit Ethernet Ports Multi-Gigabit PoE Managed Switch, 216 Gbps, Black (SG6654X)* Ethernet Switches & Splitters

$136.89

SKU: SKU24614996 Categories: Computers & Accessories, Ethernet Switches & Splitters, Networking & Wi-Fi Tag: TP Link Brand: TP Link

Description
Reviews (0)

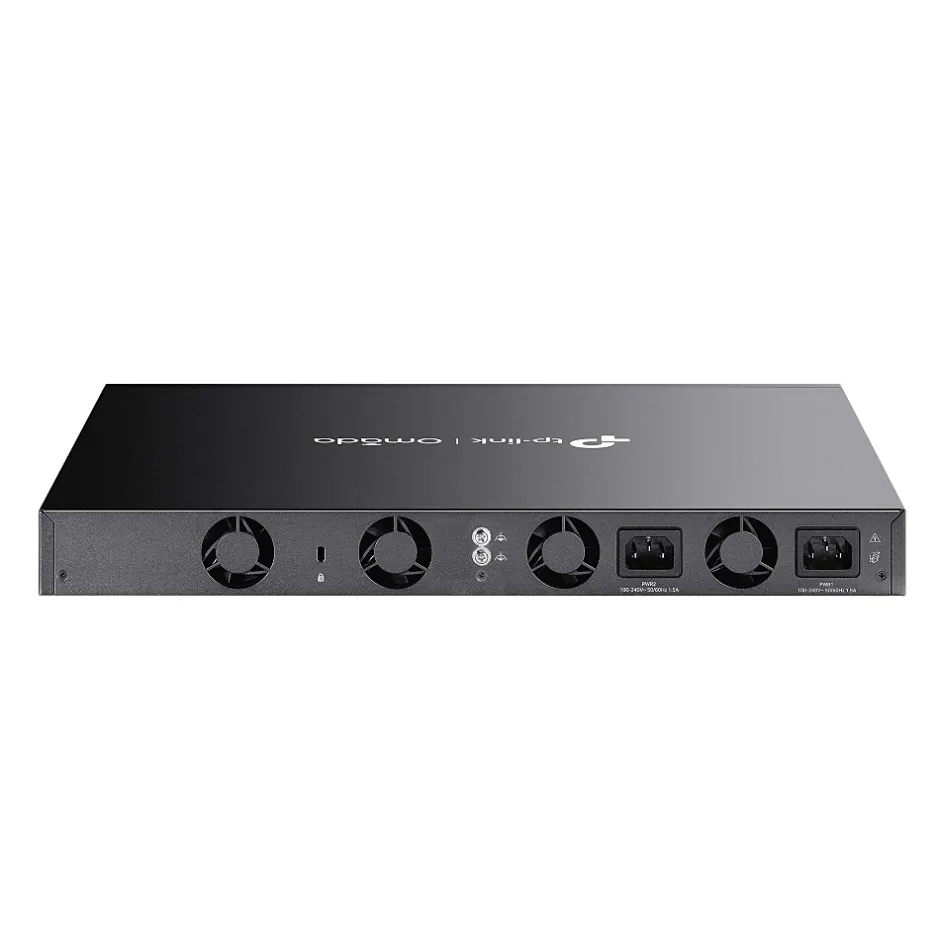

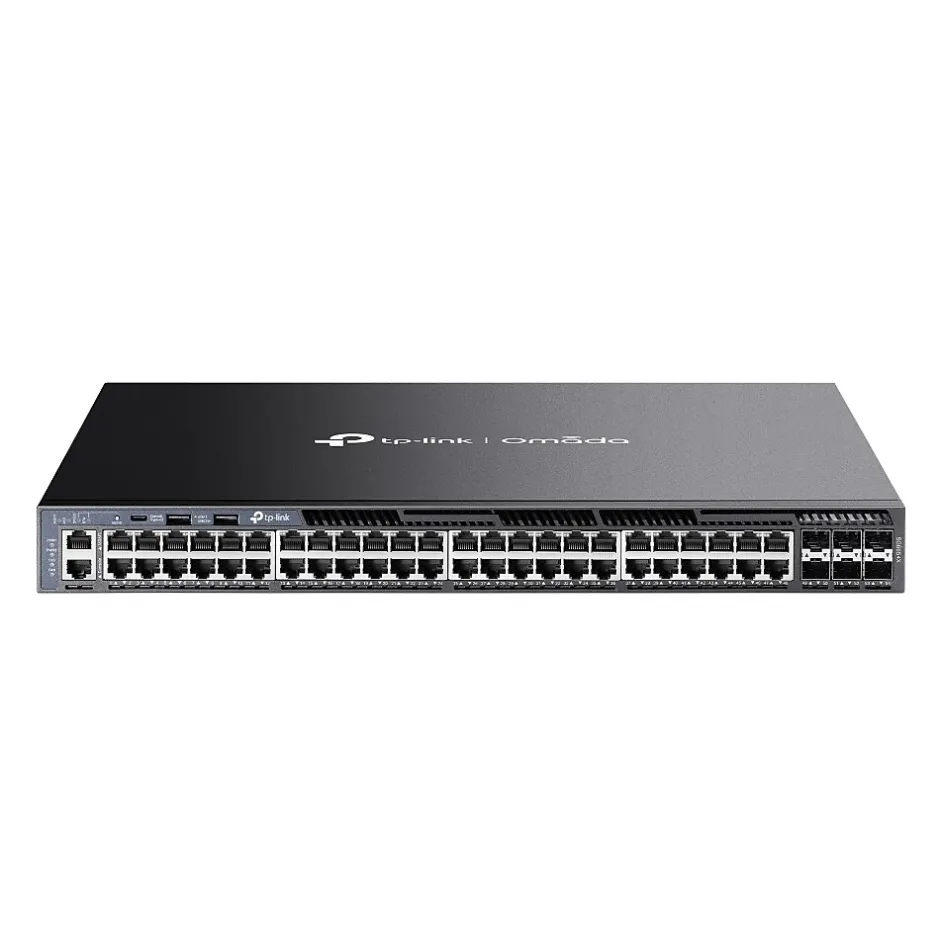

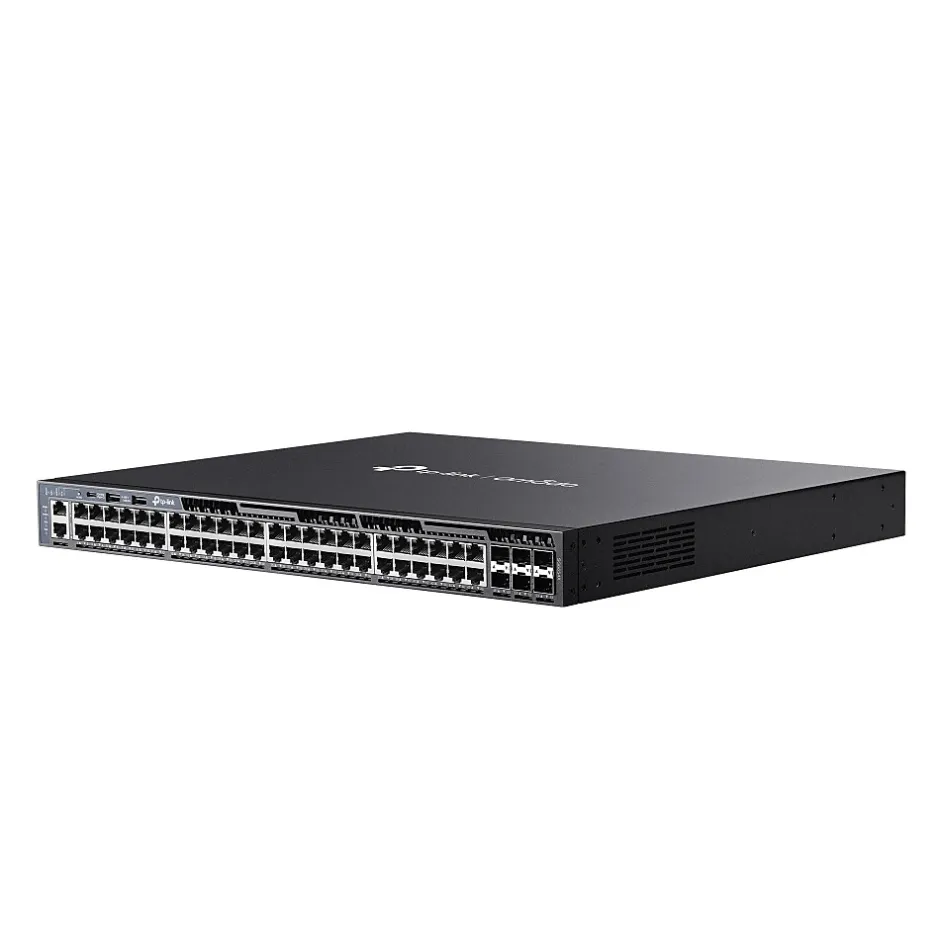

Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

The TP-Link Omada SG6654X switch features 48 Gigabit Ethernet ports, providing ample connectivity for high-density networks. It belongs to the Multi-Gigabit performance class and operates as a fully managed switch, offering sophisticated control over network traffic and configuration.
This switch supports Power over Ethernet (PoE), eliminating the need for additional power cables by supplying power directly through the Ethernet ports, making it convenient for powering PoE-enabled devices such as IP cameras and wireless access points.
With a switching capacity of 216 Gbps and a forwarding rate of 160.7 Mpps, this switch ensures fast and reliable data transfer across your network, even in high-demand scenarios.
The SG6654X is rack-mountable, making it easy to install in standard 19-inch network racks. This form factor is ideal for enterprise environments where space and organization are crucial.
This switch does not offer wireless connectivity, focusing instead on providing high-performance wired network connections.
It supports SNMP versions 1, 2c, and 3, allowing for seamless integration with network management systems for remote monitoring and management of network devices.
The switch features Quality of Service (QoS) capabilities, including 802.1p and DSCP priority queuing, ensuring that critical traffic such as VoIP or video conferencing gets prioritized bandwidth for smoother performance.
Advanced security features such as Access Control Lists (ACLs), 802.1X authentication, and IP-MAC-Port Binding ensure robust network protection. The switch also supports features like ARP Inspection and DoS defense to safeguard your network from malicious attacks.
The switch operates in both Layer 2 and Layer 3 modes, supporting protocols like OSPF, RIP, and VRRP for dynamic routing, while ensuring excellent throughput for demanding applications.
The SG6654X is designed with energy-efficient technologies, which automatically adjust power consumption based on link status and cable length, reducing operational costs without compromising performance.
The switch adheres to IEEE 802.3ab/ae/z standards, ensuring compatibility with a wide range of networking equipment. It also complies with RoHS and CE certifications for environmental and safety standards.
This product is not manufactured by a certified diverse organization, as no specific diversity designation (such as MBE) has been noted for this manufacturer.
The switch supports stacking of up to 4 units, allowing network administrators to manage multiple switches as a single entity, thus simplifying network management and increasing scalability.
Manufactured by TP-Link, a globally recognized leader in networking products, the Omada SG6654X is part of the Omada SDN platform, enabling centralized cloud management for flexible and efficient network control.

Specifications table
Attribute name	Attribute value
Address Database Size	SFP, SFP+
Warranty Information The overall height of the product, measured top to bottom.	1.75
Input Voltage Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.	Yes
Number of Ethernet Ports	Managed Switch
Amperage (amps) Auto-Sensing is a feature in which a device can determine the characteristics of an attached device and configure itself accordingly	Yes
Buffer Memory Weight of the product measured in pounds.	5
Data Transfer Rate Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	1000 – 1499
Performance Class	10
Width in Inches	Allows traffic monitoring by sending copies of network packets to monitoring systems
Auto-Detecting Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.	Yes
Full-Duplex	Include 802.1X for network access control, 802.3af/at for PoE, and IPv6 for next-generation IP addressing.
Output Voltage An uplink port is a port on a router, or switch, designed to connect a device to another device.	Many enterprise switches offer Gigabit uplinks for interconnecting switches or routers at high speeds.
Stackable	Rack Mountable
Series or Collection	Yes
Power Supply Actual manufacturer name for the color of the product.	Black
SNMP	10/100/1000Mbps
Layer Indicates whether product has gaming capabilities	Gaming
Wireless Connectivity Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	10000
Depth in Inches Quality of Service (QoS) devices equipped with QoS capabilities allow users to priortize bandwidth for specific devices or activities.	Yes
Jumbo Frame	9KB
